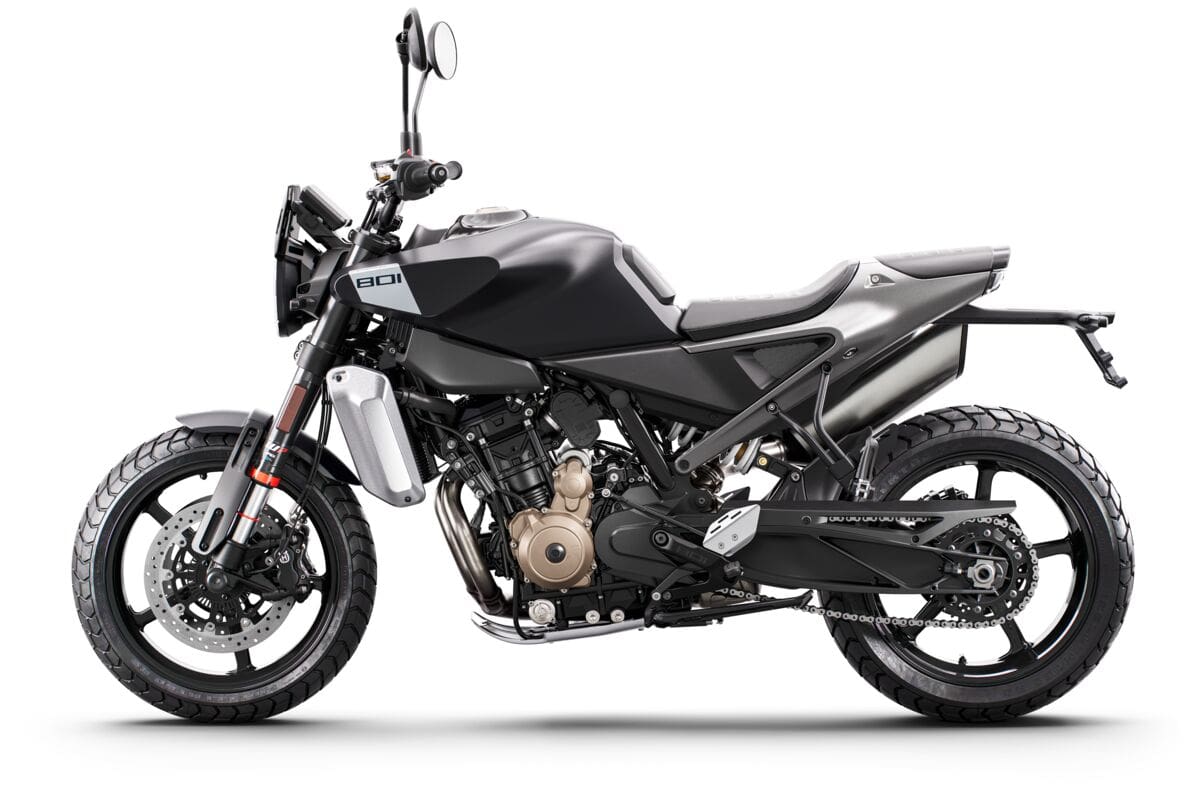

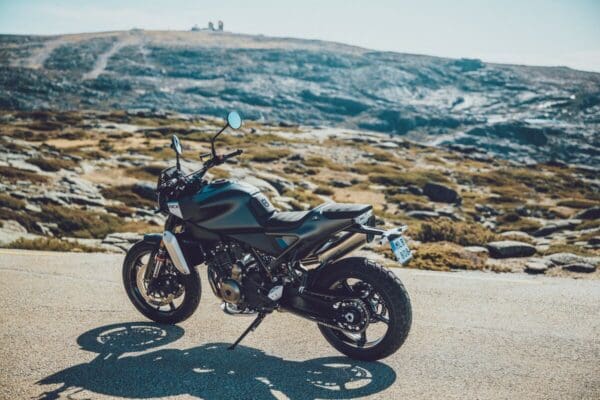

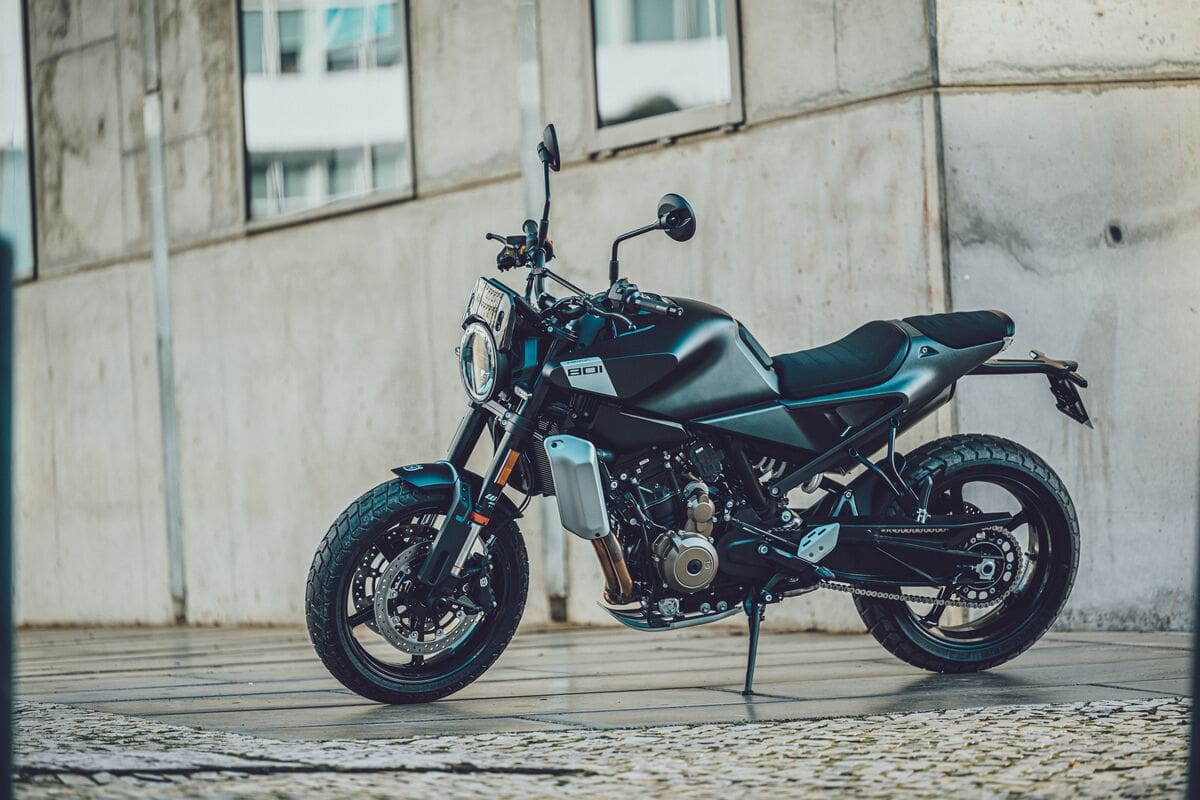

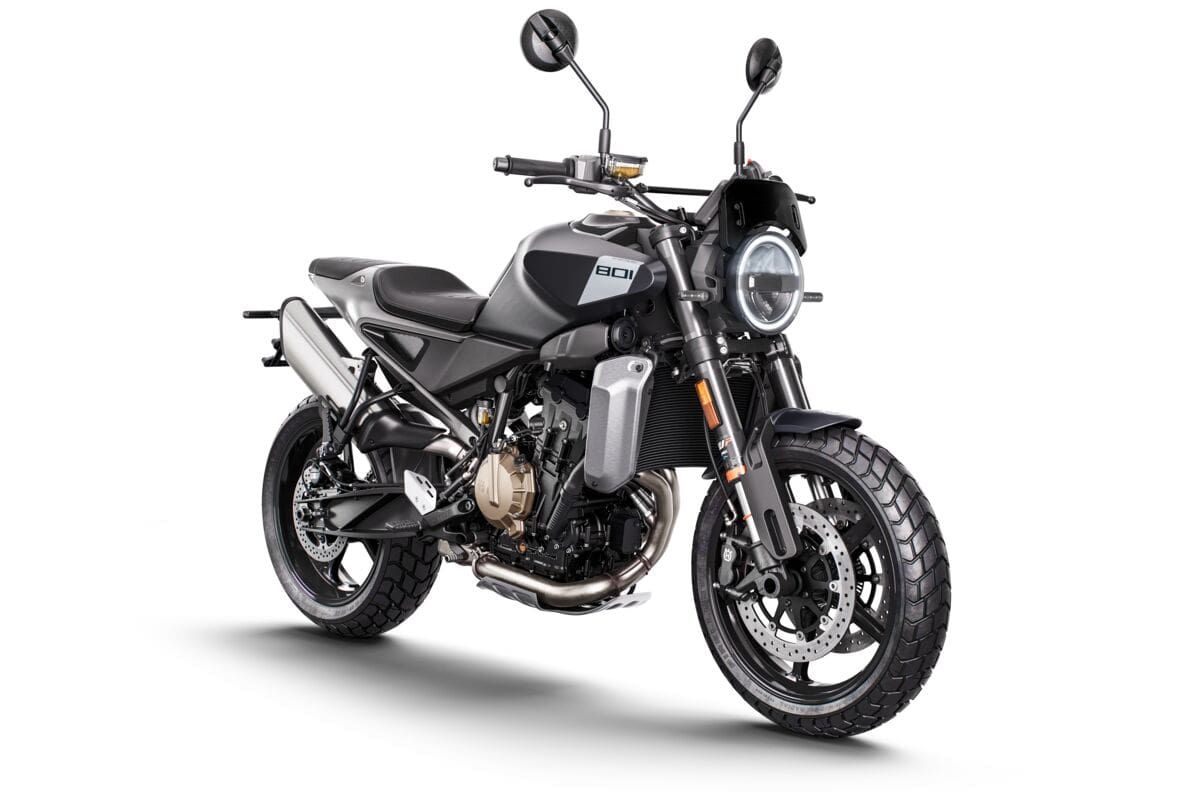

By combining exceptional versatility, performance, and minimalistic styling, the Svartpilen 801 makes sure you own the road. Beneath the dark tones of the scrambler-inspired aesthetics, a compact and powerful parallel-twin engine gets you where you need to be. A twist of the wrist always delivers exceptional torque to the rear wheel. The beautifully crafted and perfectly balanced chassis is enhanced by the refined ergonomics that create an engaging and intuitive riding experience through both city streets and out onto the open road. Adjustable WP suspension ensures every rider can create a personalised and comfortable setting while the extensive selection of state-of-the art electronic aids add multiple levels of customisation.

ENGINE

• Primary drive – 39:75
• Transmission – 6-speed
• Cooling – Liquid cooled with water/oil heat exchanger
• Secondary gear ratio – 16:41
• Power in KW – 77 kW
• Starter – Electric starter
• Stroke – 65.7 mm
• Bore – 88 mm
• Clutch – Cable operated PASC slipper clutch
• CO2 emissions – 106 g/km
• Compression ratio – 12.5
• Displacement – 799 cm³
• EMS – Bosch EMS with RBW
• Design – 2-cylinder, 4-stroke, parallel twin
• Fuel consumption – 4.5 l/100 km
• Fuel-mixture generation – DKK Dellorto (Throttle body 46mm)
• Lubrication – Forced oil lubrication with 2 oil pumps

CHASSIS

• Weight (without fuel) – 181 kg
• Tank capacity (approx.) – 14 l
• Wheelbase – 1.475 mm
• Front brake disc diameter – 300 mm
• Rear brake disc diameter – 240 mm
• Front brake – 2x radially mounted 4 piston caliper
• Rear brake – Single-piston floating calliper
• Chain – 520 X-Ring

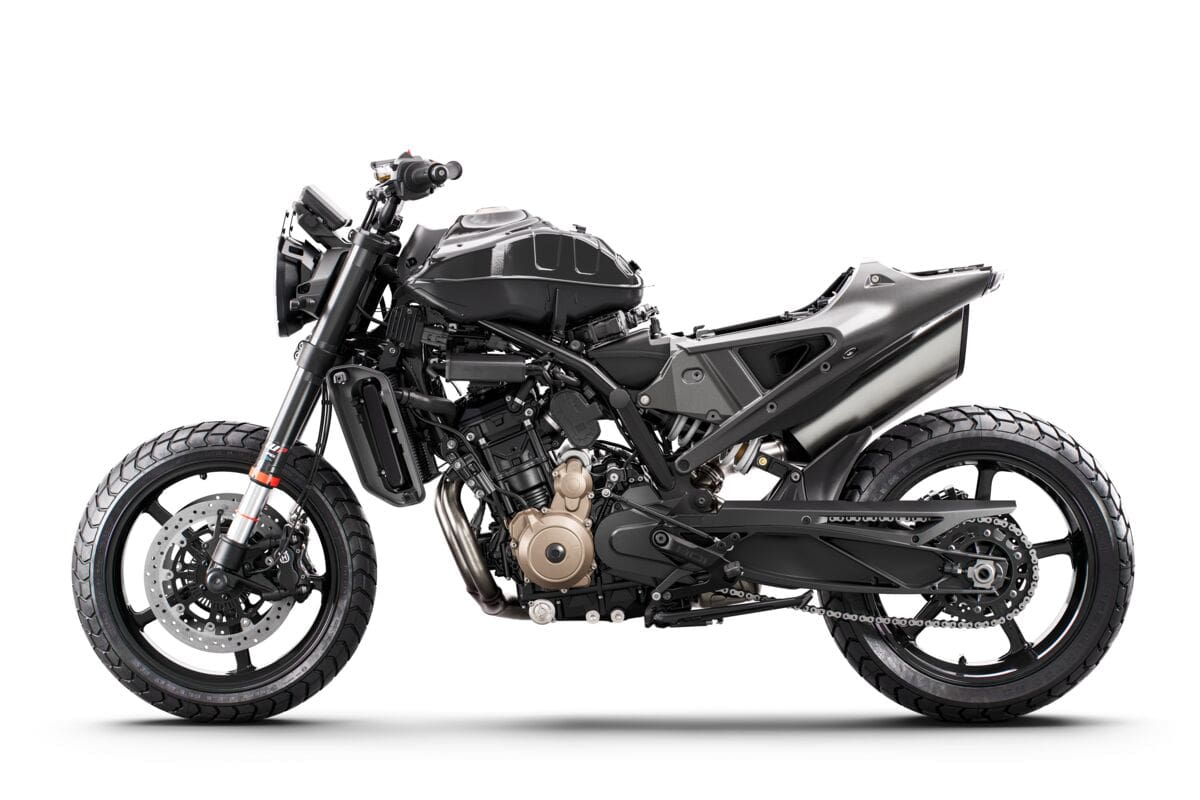

• Frame design – Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
• Front suspension – WP APEX 43
• Ground clearance – 174 mm

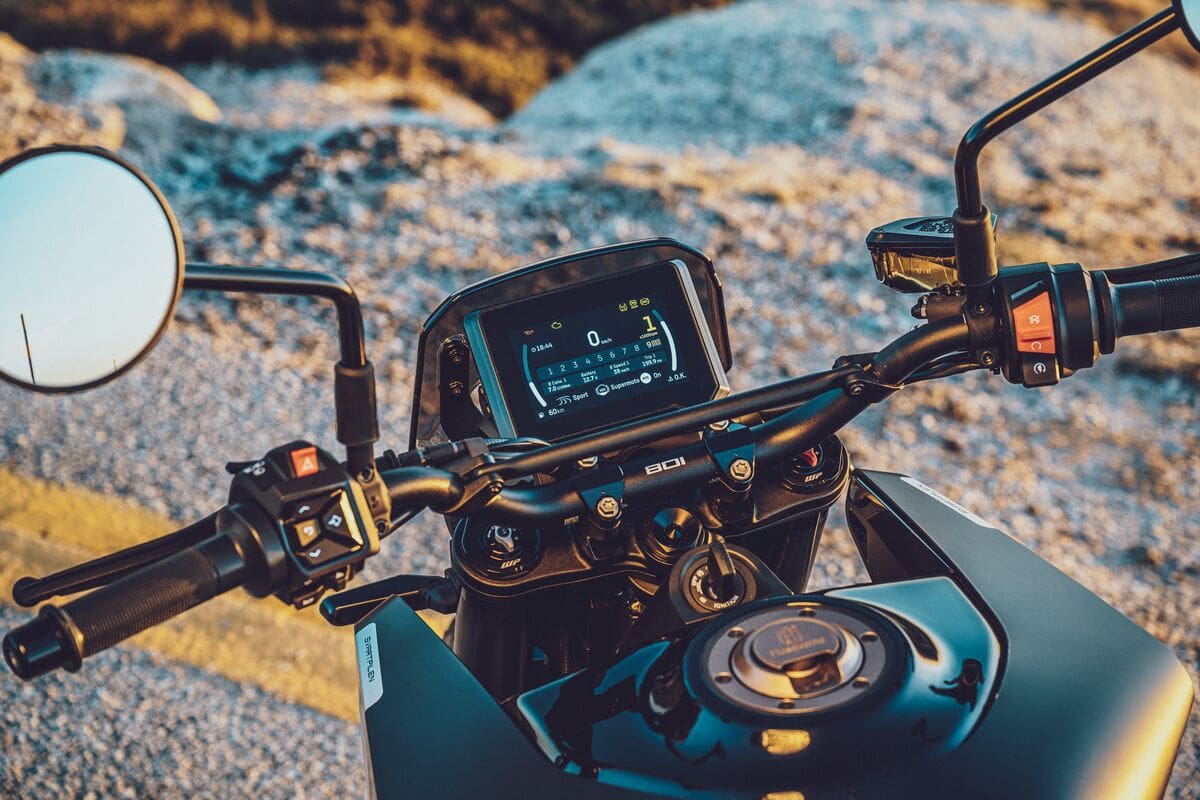

• Handlebar – Aluminum, tapered with cross member, Ø 28/22mm
• Rear suspension – WP APEX – Monoshock
• Seat height – 820 mm
• Silencer – Stainless steel primary and secondary silencer
• Steering head angle – 65.5 °
• Rear subframe design – Cast aluminium, powder coated
• Suspension travel (front) – 140 mm
• Suspension travel (rear) – 150 mm
• Wheels – 3.50 x 17″; 5.50 x 17″
• Wheels – Cast aluminium wheels
• Wheelbase – 1.475 ± 15 mm
